Parsons Console Bookshelf

This guide uses pocket holes for the shelf trim and countersunk through-screws for the frames and final joining.

Choose sound stock and suitable fasteners

Choose straight, dry boards without splits or loose knots at joints. Screw gauge and counts are not specified. Choose screws and pilots for the timber and jig; do not use drywall screws.

Finishing supplies

Have abrasives, optional compatible filler, and interior paint or stain with clear topcoat ready. No furring strips or brad nails are used.

Read all three assembly stages before cutting. Work on a flat, stable surface and keep a helper available for the final assembly.

Measure and cut

Gather a tape measure, pencil, square and circular saw with a suitable guide. A miter saw may be used for square crosscuts within its capacity. Support both sides of each cut and clamp the work securely.

Drill and assemble

Have a drill/driver, suitable pilot and clearance bits, countersink bit, pocket-hole jig with its matched stepped bit, stop collar and driver, plus clamps and a level. Use a sander or sanding block for preparation.

Protect yourself

Wear eye and hearing protection. Use dust extraction and appropriate dust protection. Keep hands clear of the blade and clamp small parts before drilling. Disconnect power before blade or bit changes. Follow all tool instructions.

Set the pocket jig for the shelf

The shelf is typically 3/4 in (19.1 mm) thick. Set the jig and stop collar for that material thickness, as the jig maker directs. This is not a straight-hole drilling depth. Make a test joint on offcuts before drilling finished parts.

Use the written measurements

The sketches are assembly illustrations, not full-size templates. Verify actual stock dimensions and use one unit system consistently. Metric equivalents are rounded to 0.1 mm; mark each joint from one reference edge.

Label the parts as you cut. The D rails must match the actual width of A; do not cut them from a nominal board name.

Nominal is not actual

Typical surfaced 1×12 is 3/4 × 11 1/4 in (19.1 × 285.8 mm). A 2×2 is 1 1/2 × 1 1/2 in (38.1 × 38.1 mm). Measure your boards before marking parts.

Fit D to A

All three A boards must have matching widths. Cut D to that width. With 11 1/4 in (285.8 mm) shelves, overall depth is 14 1/4 in (362.0 mm).

Cut on the waste side

Square a sound reference end. Allow for blade kerf and check the first part before cutting its matches. Keep ends square and compare matching pieces before assembly.

The six-board 2×2 allowance below fits every part with space for saw kerf and end trimming. Check for defects before committing to the layout.

Keep useful offcuts

The remainder of board 6 is spare stock. Use sound offcuts to test the pocket joint, pilot holes and countersink depth.

Do not chain measurements through cuts

Measure each part separately; every cut removes material. Allow for that loss as well as end trimming. Reject damaged joint areas.

Prepare before joining

Sand faces that will be hard to reach later. Keep joints flat and unfinished. Mark shelf tops and all four leg bottoms as your references.

All three shelf surfaces finish flush with the tops of their trim and end crossrails. Mark heights upward from the bottoms of the legs.

Mark the rail bands

From the leg bottoms, mark the lower and upper edge of each D rail: 0 to 1 1/2 in (0.0 to 38.1 mm); 15 1/4 to 16 3/4 in (387.4 to 425.5 mm); and 30 1/2 to 32 in (774.7 to 812.8 mm).

Check the arithmetic

Length: 45 + 1 1/2 + 1 1/2 = 48 in. Depth: 11 1/4 + 1 1/2 + 1 1/2 = 14 1/4 in. The two clear openings between the 1 1/2 in trim rails are equal; shelf boards are thinner than those rails.

A × 3 / B × 6 / 1 1/4 in (31.8 mm) pocket screws

Pin It!

Drill along the two long edges

Mark the underside of each A. With the jig set for 3/4 in (19.1 mm) material, drill pocket holes along both 45 in (1143.0 mm) edges, about every 8 to 10 in (203.2 to 254.0 mm). Keep holes clear of ends and defects.

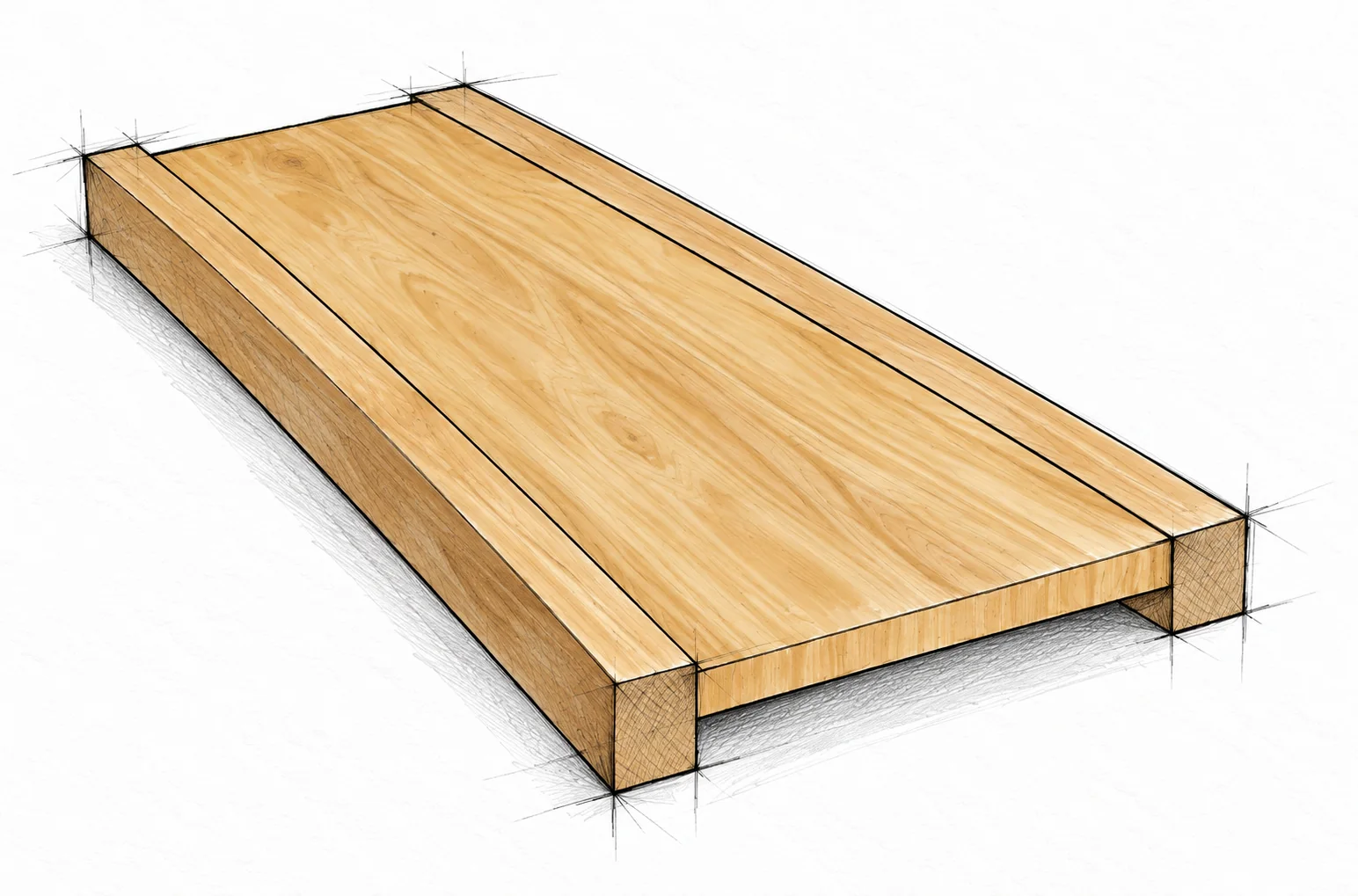

Clamp the tops flush

Place one B against each long edge of A. Align the ends of all three parts and keep both trim tops flush with the shelf top. Each trim projects 3/4 in (19.1 mm) below the shelf underside. Clamp against a flat surface so no lip forms.

Drive the pocket screws

Drive a 1 1/4 in (31.8 mm) pocket screw into each pocket without overdriving. Check the first assembly for flatness and flush edges, then repeat twice. Leave both short shelf ends free for the end frames.

C × 4 / D × 6 / 3 in (76.2 mm) screws and glue

Pin It!

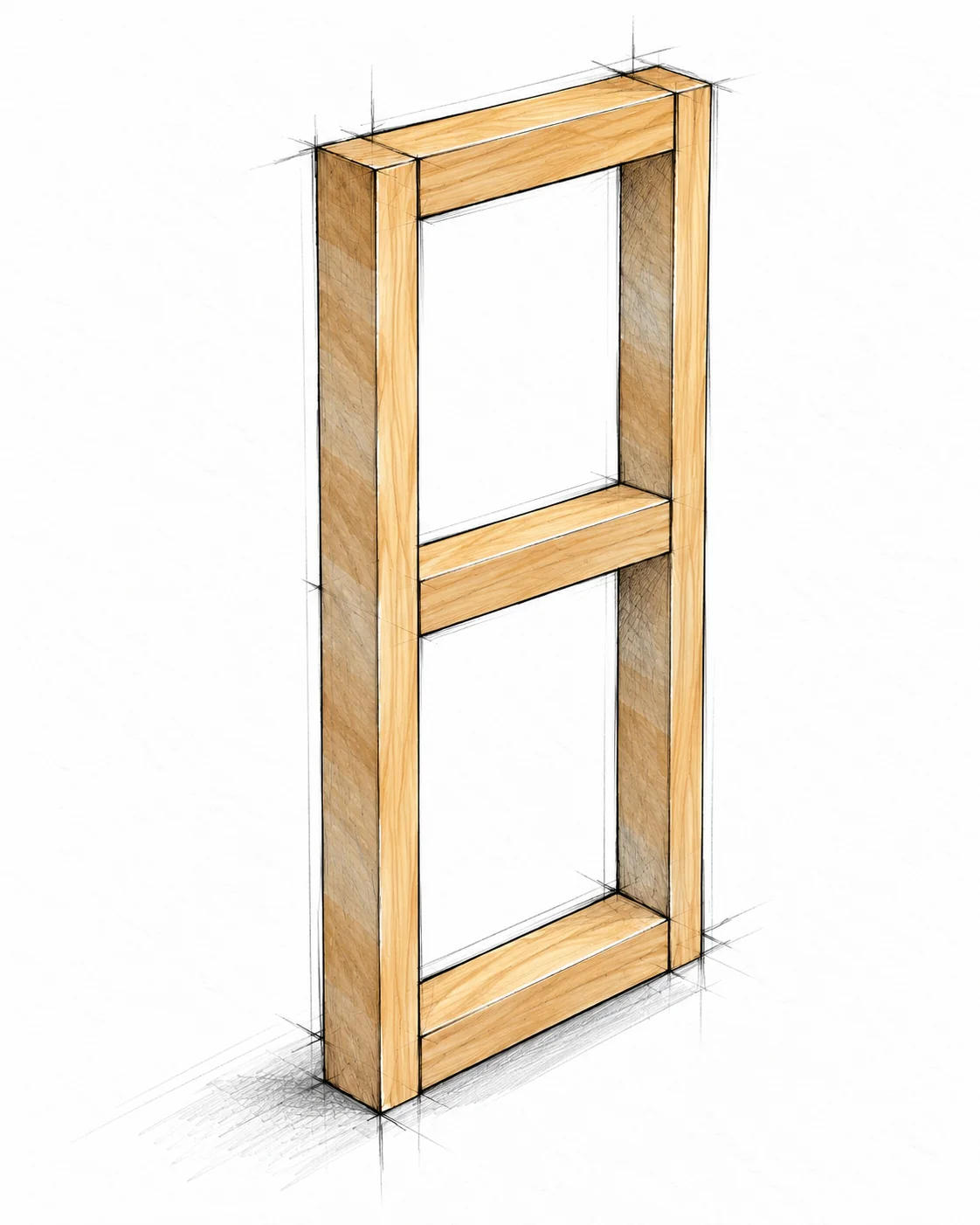

Lay out one end

Place two C legs parallel on a flat surface. Fit three D rails between them at the bands marked on page 6. The upper rail is flush with the leg tops; the lower rail is flush with the leg bottoms.

Check and fasten

Dry-clamp the frame. Check the corners with a square and compare its diagonals. Predrill from the outside of each leg into the end of each D. Countersink only enough to seat the screw head.

Glue the joints

Apply wood glue to mating faces and reclamp. Drive 3 in (76.2 mm) screws through the legs into the rails. Keep the frame flat and avoid splitting or overdriving. Make the second frame to match.

PLAN THE SCREW PATHS

Final-assembly screws enter the same legs from a perpendicular direction. Keep the two screw paths offset so they cannot collide.

Three shelf assemblies / Two end frames / 3 in (76.2 mm) screws

Pin It!

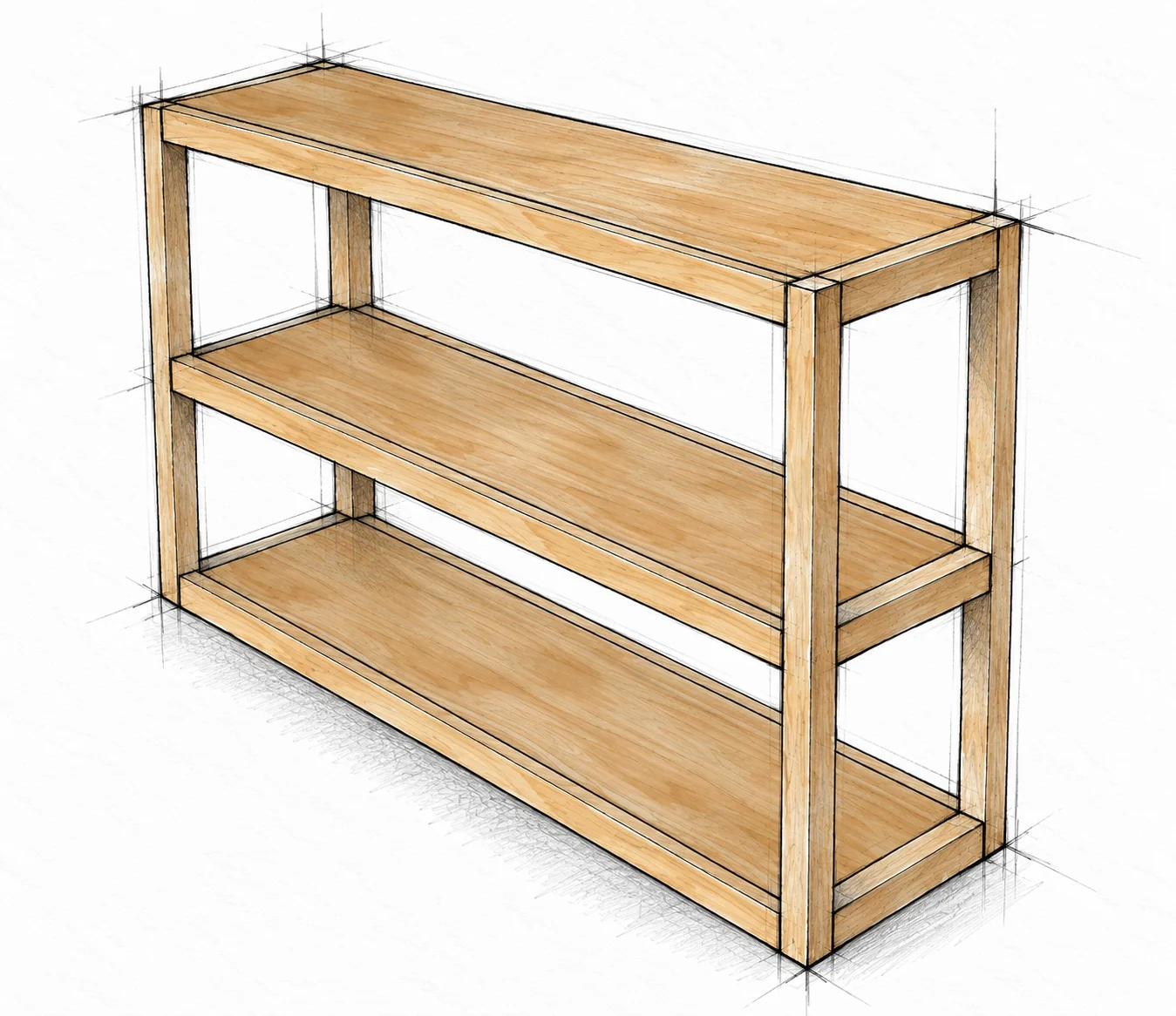

Dry-fit the complete console

With help, hold the shelf assemblies between the two end frames. The long trim B meets the legs; each shelf end meets D. Align shelf tops with the matching crossrail tops, and align the outside trim and leg faces.

Predrill and fasten

Clamp securely. Predrill and countersink through the outside end faces of the legs into the ends of the long B rails, avoiding the earlier screws. Apply glue at the mating joints, reclamp and drive 3 in (76.2 mm) screws.

Check the complete frame

Check corners and front and back diagonals. On a flat surface, all four legs must touch and all shelves must be level. Correct twist before the glue sets; let it cure as directed.

The warm timber in the sketches is one finish option. Complete all sanding and coating before putting the console into service.

Prepare the surface

Inspect for splits, loose joints and protruding screw tips. Sand with the grain and ease sharp edges. Remove glue residue, which can affect stain, and clean away sanding dust.

Paint or stain

For paint, fill visible holes if desired, sand smooth, then apply compatible primer and paint. For stain, test an offcut; use compatible color-matched filler if desired and protect with a clear topcoat.

Follow the finish instructions

Follow product directions for preparation, ventilation, coats, drying and curing. Handle and dispose of oily cloths as directed; do not pile them up. Let glue and finish cure fully before use.

Place and load cautiously

Use indoors on a firm, level floor. No tested load rating is provided. Keep heavier items low and spread weight evenly; do not overload. This is not a seat, step or climbing frame. Prevent climbing and pulling.

Prevent tipping and maintain

Secure against tipping with a restraint suited to the console and wall, installed to its instructions. No restraint hardware is specified. Check joints and stability regularly; stop use if it rocks, splits or loosens.
